Biometrics Units
Biometrics Iots - Facial
The biometrics unit offers options for fingerprint recognition, facial recognition, or both. Additional integrated features include RFID reader, POE, WiFi, Barcode, QR code, CMOS camera, IP Intercom, GPS, and 3G module.
The device uses advanced encryption, specifically TLS 1.3 with 256-bit encryption. All devices are accessible and manageable through any web browser, like online banking.
Features include:
- An embedded web server for convenient browser access.
- Encrypted network communication with TLS 1.3 and 256-bit encryption.
- Optional built-in CMOS/video camera for video surveillance.
The fingerprint sensor is constructed from vandal-resistant hardened crown glass and has a resolution of 500 dpi. When utilizing facial recognition, a photo of the user is captured and recorded in the event log. Both fingerprint and facial recognition systems offer optional live detection features. Depending on the model, the system can support up to 250,000 users and log up to 10 million events.
Enhance your business security and efficiency with the ACTA series of Biometrics, RFID, and IoT solutions—ideal for your offices and facilities. These solutions offer user-friendly access through any web browser on your PC, laptop, or mobile phone, like internet banking. Users, features, and functions can be upgraded via software patches, ensuring the technology remains current.
The device is secured with the latest TLS 1.3 256-bit encryption and receives continuous updates to safeguard your network. With optional PoE (Power over Ethernet) built-in, a single CAT5-6 cable can meet all the device's requirements, including door strike operations. This feature, combined with online maintenance, significantly reduces cabling costs, remote on-site maintenance, and travel expenses.
Scalability is straightforward: install one unit today and thousands tomorrow with a simple plug-and-play setup on your network. The IP65 rating ensures reliable performance in all weather conditions.
Built-in options include:
- IP Intercom for communication with visitors at the door
- Wi-Fi and GSM/3G module for remote and mobile Internet connections (available from Q2 2019)
- GPS for device tracking (available from Q2 2019)
| Model: | Facial | Fingerprint | Smartcard | Fingerprint + Smartcard | Keypad | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fingerprint Enrollment | Optional | Optional | Optional | ||||||||||
| Built-in smartcard reader | Optional | Optional | Optional | ||||||||||
| Face enrollment with video camera | Optional | Optional | Optional | Optional | |||||||||
| Live detection | Optional for Fingerprint & Facial Recognition | ||||||||||||
| Built-in web and database server | |||||||||||||
| Number of users | Basic 1,000 users can be upgrade to 100,000+ | ||||||||||||
| Max. transaction records stored (*depending on the model, on request only) | 1,000,000 logs/3,500 images | ||||||||||||
| Static IP address assignment | |||||||||||||
| Dynamic IP address assignment | |||||||||||||
| Power Over Ethernet (Built-in) | Optional(IEEE 802.3af standards) | ||||||||||||
| Resolution of LCD | 2.8″ 64K/256K Color TFT Screen 320 x 240 Pixel Resolution | ||||||||||||
| Non-volatile memory | 4 GB | ||||||||||||
| Computer OS support (with Internet browser) |
|
||||||||||||
| Valid characters of employee ID | 0-9, A-C (max. 16 characters) | ||||||||||||
| Programmable function keys support | F1, F2, F3, F4 | ||||||||||||
| Authentication time | < 1 second | ||||||||||||
| FingerPrint Users capacity | 250,000(1:1)/20,000(1:N) | ||||||||||||
| Face Users capacity | 50,000(1:1)/50,000(1:N) | ||||||||||||
| Alert | By Email and SMS, LCD Message Displayed | ||||||||||||
| Database interface support | ODBC/JDBC | ||||||||||||
| Encryption | AES 256-Bit (Continuous Upgrade) | ||||||||||||
| Multi-lingual support | Basic 1,000 users can be upgrade to 100,000+ | ||||||||||||
| Network interface (Built-in) | – 1,000 Base T Ethernet (Built-in)/SNMP support – WiFi IEEE 802.11 a/b/g/n/ac with 2.4G/5G | ||||||||||||
| I/O Interface | – RS-232/RS-485 – Wiegand output (26bit) – Power to strike, 12V DC at Max 500mA | ||||||||||||
| Export Report | CSV/Text file | ||||||||||||
| Remote Control | |||||||||||||
| Operation Temperature | -20 Degree C to 60 Degree C | ||||||||||||
| Modules | CPU/Fingerprint Mifare/Desfire HID Proximity HID iClass/FeliCa EM CEPAS Card(Singapore) CMOS/Video camera(Optional) | RFID Card 13.56 MHz ISO14443A/B ISO15693 125kHz 13.56MHz Colour LCD & Keypad | POE WiFi GSM/3G | ||||||||||
| Modes of Authentication | Fingerprint, Facial, Smartcard, PINID + Fingerprint, Facial + Fingerprint Smartcard + Fingerprint, Smartcard + FacialSmartcard + PIN | ||||||||||||
| Mobile | Optional Mobile Battery | ||||||||||||
| Relay/Doorbell Support | 1 Relay/1 Doorbell | ||||||||||||
| IP Intercom (Built-in) | Optional (SIP-enabled VoIP Intercom) | ||||||||||||
| GPS/GSM/3G Module (Built-in) | Optional | ||||||||||||
| Standards (FingerPrint/Facial) | FingerPrint: ISO 19794-2 template, ANSI/INCITS 378 template MINEX III PIV Level 2 Compliant, FBI Certified WSQ, STQC, ISO 19794-4 image Facial: Facial quailty: ISO/IEC 19794-5-2006, Image(FFI):ISO/IEC 19794-5 | ||||||||||||
| Safety standard/Casing | CE, FCC IP65-Fluid Ingress, Dust, Salt, Fog Protection | ||||||||||||
| Software Support | Agent2 (Standalone Mode) / Access Manager Suite** (Client-Server Mode) | ||||||||||||
** Access Manager Suite
Software Requirements
|
Hardware Requirements
|
||||||||||||
| (Note: Access Manager – SOAP/API will be provided for 3rd party integration | |||||||||||||
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| External I/O board: can be installed/hidden inside the secure premises ensuring no direct access to door strike connections. |  |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. |  |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. |  |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. |  |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. |  |
Fingerprint + Smartcard
The ACTAtek combination unit provides a range of authentication options, including keypad PIN (password), smart card, and biometric fingerprint recognition, making it ideal for both security (access control) and workforce management applications.
Features include:
- An embedded web server for convenient access through any web browser
- Encrypted network communication for enhanced security
- Optional built-in CMOS/video camera for video surveillance
The ACTAtek Combination Unit is a highly favored solution for access control (AC) and time & attendance (TA) applications. Its user-friendly design, lack of software installation requirements, and straightforward network connectivity provide a robust yet elegant platform for various system-level software applications.
Integrating biometric fingerprint, RFID smartcard, PIN (keypad), and a CMOS/video camera, this unit allows IT managers, security directors, and HR professionals to choose multiple authentication methods for AC and TA. It supports a variety of smartcard readers, enabling integration with existing legacy card systems.
Designed for durability, this IP65-rated unit operates effectively across an extended temperature range, ensuring reliable performance even in extreme weather conditions.
- Embedded Software: No need for additional software installation.
- Advanced Technology: Utilizes encrypted Linux web server technology for control, configuration, and administration via web browser.
- Secure Communication: SSL encrypted communication between units and browser.
- Real-Time Updates: System updates and configurations in real-time.
- High-Resolution Scanner: 500 DPI optical scanner.
- Auto-Match Support: Supports up to 10,000 users (1:N).
- Flexible Operation: Operates in standalone or network modes (Access Manager).
- Scalable and Robust: Suitable for enterprise-wide deployment, supporting thousands of users globally.
- Durable Design: IP65 rated for weather and impact resistance, protecting against fluid ingress, dust, salt, and fog.
- Optional Video Surveillance: Built-in CMOS/video camera available.
- Photo Storage: Stores up to 500 photos with FIFO internal storage.
- API Support: Easy integration with most software applications.
- User Capacity: Available in 1,000, 3,000, 5,000, 10,000, 15,000, or 20,000 user models.
- Event Logs: Supports up to 75,000 event logs.
Multiple Authentication Modes:
- Fingerprint only
- Smart Card only or Barcode only
- Smart Card + Fingerprint or Barcode + Fingerprint
- ID + Fingerprint
- ID + PIN
- Multi-Lingual Interface: Supports multiple languages (LCD & Web).
- Optional Wiegand Output: 26-bit output available with an external I/O board.
| Description | Reading Distance | |
|---|---|---|
| MIFARE® | MIFARE® : ISO 14443A | 3 – 3.5 cm |
| HID | iClass
ProxCard II
ProxKey II
ProxCard Plus
Smart DuoProx II
Smart ISOProx II
DuoProx II
ISOProx II
MicroProx Tag(Supports formats of 26, 34, 35 & 37 bits) |
3 – 3.5 cm 8 – 10 cm 3 – 5 cm 6 – 8 cm 6 – 8 cm 6 – 8 cm 6 – 8 cm 6 – 8 cm 3 – 5 cm |
| EM | EM4100 Compatible | 6 – 8 cm |
| Felica | SONY FeliCa® | 2 cm |
| CEPAS | CEPAS, Singapore Standard | <1 cm |
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| External I/O board: can be installed/hidden inside the secure premises ensuring no direct access to door strike connections. |  |
| WiFi Adaptor: To create a wireless network connection in WLAN environment |  |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. |  |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. |  |
Fingerprint Scanner
The ACTAtek FingerPrint unit provides keypad PIN (password) and biometric fingerprint authentication options, making it suitable for both security (access control) and workforce management applications.
Features include:
- An embedded web server for easy access via any browser
- Encrypted network communication for enhanced security
- An optional built-in CMOS/video camera for video surveillance
The ACTAtek Fingerprint-only model utilizes advanced 500 dpi optical fingerprint scanning technology. This model also offers an optional built-in CMOS/video camera that captures snapshots of accepted or rejected attempts, storing up to 500 photos directly in the ACTAtek database for web interface/browser viewing. Additionally, the ACTAtek video camera output can be connected to an LCD monitor or DVR for a comprehensive video surveillance solution.
- Embedded Software: No need for additional software installation.
- Advanced Technology: Uses encrypted Linux web server technology for control, configuration, and administration via a web browser.
- Secure Communication: SSL encrypted communication between units and the browser.
- Real-Time Updates: Supports real-time system updates and configuration.
- High-Resolution Scanner: Equipped with a 500 DPI optical fingerprint scanner.
- Auto-Match Support: Can handle up to 10,000 users (1:N).
- Flexible Operation Modes: Functions in both standalone and network (Access Manager) modes.
- Scalable and Robust: Suitable for enterprise-wide deployment, supporting thousands of users globally.
- Durable Design: IP65-rated casing that is weather and impact resistant, protecting against fluid ingress, dust, salt, and fog.
- Optional Video Surveillance: Features a built-in CMOS/video camera for video surveillance.
- Photo Storage: Capable of storing up to 500 photos with FIFO internal storage.
- API Support: Facilitates easy integration with most software applications.
- User Capacity: Available models support 1,000, 3,000, 5,000, 10,000, 15,000, or 20,000 users.
- Event Logs: Can store up to 75,000 event logs.
- Multiple Authentication Modes:
- Fingerprint only
- ID + Fingerprint
- ID + PIN
- Multi-Lingual Interface: Supports multiple languages on both the LCD and web interface.
- Optional Wiegand Output: Offers 26-bit output with an optional external I/O board.
- Fingerprint image resolution: 500DPI
- False Rejection Rate (FRR): 0.01%
- False Acceptance Rate (FAR): 0.0001%
- Allowed fingerprint rotation: +/- 15 Degrees
- Matching speed: 0.05Sec
- Scanning speed: < 1 sec

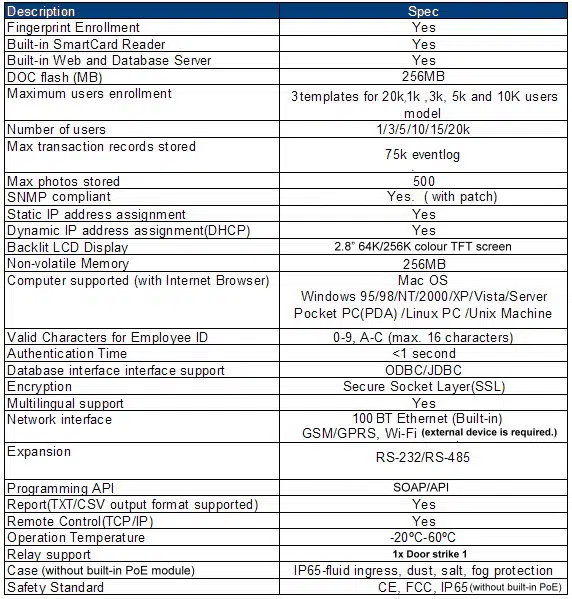

Fingerprint Unit Spec
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| External I/O board: can be installed/hidden inside the secure premises ensuring no direct access to door strike connections. | |
| WiFi Adaptor: To create a wireless network connection in WLAN environment | |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. | |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. | |
LogiPrint
The ACTAtek LogiPrint is a USB device designed for remote user fingerprint enrollment. It can be utilized with ACTAtek Time Attendance (ACTAtek TA) systems or remote desktop enrollment software on a PC.
With ACTAtek LogiPrint technology, users can conveniently perform remote fingerprint enrollment at a single PC and subsequently update the fingerprint data across all ACTAtek terminals.
LogiPrint integrates seamlessly with ACTAtek, allowing administrators to enroll users using the ACTAtek Time Attendance software (ACTAtek TA). This proprietary software enables you to add, modify, and delete users, download logs, and generate attendance and lateness reports.
Compatibility: Works with ACTAtek Fingerprint (FAM model) or Combination model.
Convenience: Allows for remote user fingerprint enrollment at the headquarters, with the ability to push fingerprint data to ACTAtek devices at remote sites.
- Advanced Technology: Features cutting-edge CMOS camera technology and a precise optical system design.
- Scanning Window: Measures 16x24 mm.
- Image Quality: Captures fingerprints at 150K pixels (480×320) with a resolution of 508 DPI.
- Interface: USB 1.1 compatible, plug-and-play device.
- Connectivity: Includes a standard 2M USB cable.
- Compact Size: Dimensions are 45 x 63 x 26 mm.
- Lightweight: Weighs only 80 grams.
- Operating Temperature: Functions within a range of 0 to +55 degrees Celsius.
Electrical Characteristics:
- Light Source: Infrared LED.
- Supply Voltage: DC 4.5-5.5V via USB port.
- Power Consumption:
- Active: <550mW (during scanning)
- Standby: <400mW (when connected to PC but not scanning)
- Sleep Mode: <15mW (activated by standard USB bus event only)
- ESD Resistance:
- Contact: 8KV
- Air Discharge: 16KV (without permanent damage)

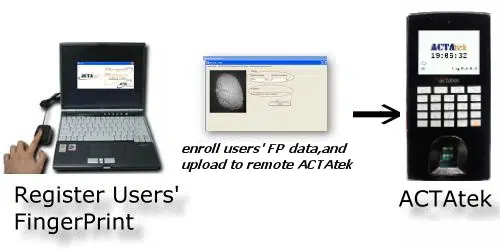

Here is an example diagram illustrating how ACTAtek LogiPrint can integrate with ACTAtek TA to enroll users' fingerprints and upload them to remote ACTAtek devices (FAM model).
